ReGen Liner Hanger

ReGen Liner Hanger

  Onshore        Field-proven Technology

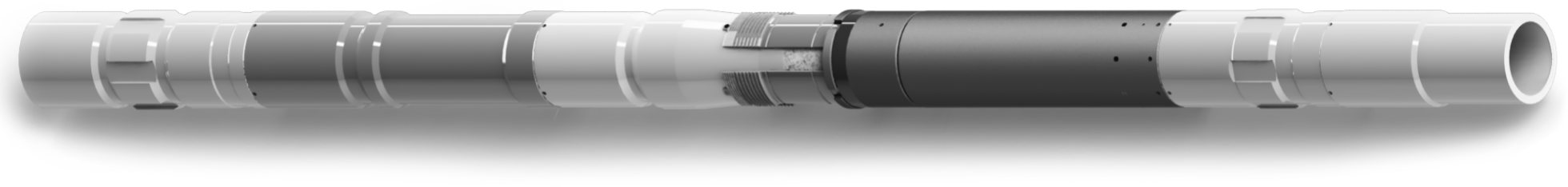

The REGEN™ Liner Hanger is a robust, field-proven slim hole HPHT hydraulic set liner hanger, available with an optional liner top packer for the recompletion and refracture of current well stock.

This liner hanger offers impressive tensile and compressive load capabilities and can be deployed in a full range of environments.

Benefits
  1. The REGEN™ Liner Hanger allows the operator to deploy a conventional liner inside their existing well with just a single drop in liner size, thereby allowing conventional plug and perf operations and maximum stimulation pump rates. This allows the operator to efficiently restimulate their wells.
  2. The REGEN™ Liner Hanger anchors and centralizes the liner top in the well, reducing harmonics, erosion and vibrations which can otherwise cause damage to both the cement and parent casing.
  3. The system eliminates the need for additional intervention trips or clean out trips, as there is no need to retrieve the uncemented portion of the liner.

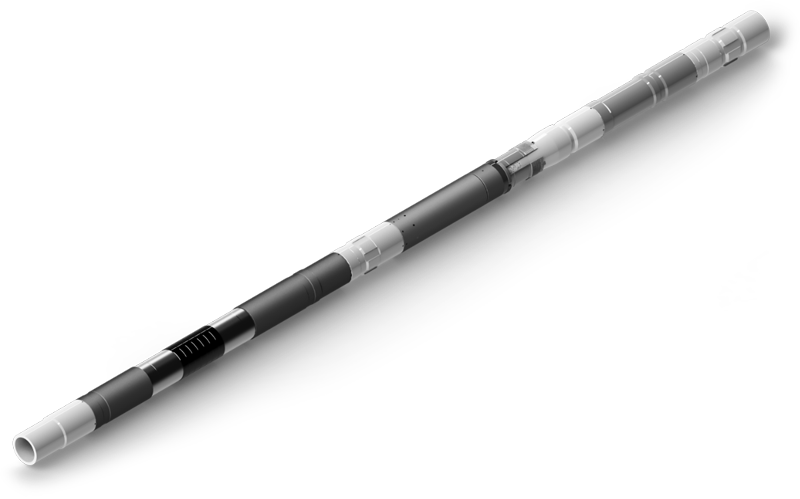

Liner Hanger and Refrac PackerREGEN Liner Hanger can be used in conjunction with the REGEN Refrac Packer


Application
The REGEN™ Liner Hanger can be deployed in both cemented and uncemented applications.

In uncemented applications, isolation can be achieved utilizing the REGEN™ Refrac Packer.

Features
  • Slim run-in-hole OD
  • Proprietary slip design
  • Anti-preset system
  • Matches liner drift
Sizes
  • 3-½" x 4-½"
  • 3-½" x 5"
  • 4" x 5-½"
  • 4-½" x 5-½"
  • Custom size
